Solis String Inverters


Solis Mini (0.7-2.5)K-M
Single-phase string inverter
The single-phase Solis Mini 0.7-2.5 kW string inverters are the ideal solution for small residential installations.
Small in size and easy to install, the Solis Mini come with a DC disconnect switch and have a wide range of input voltages to allow you to collect the maximum amount of energy possible from the photovoltaic system with a maximum efficiency up to 97.1%.
They are ideal for installations in small spaces.
Main features:

Easy Installation

10 year guarantee

“Zero entry” function (with accessory)

WiFi Monitoring included

IP66

String current up to 14A


Solis Single-phase S6-GR1P (3-6)K
Single-phase string inverter
Solis single-phase 3-6 kW string inverters with double MPPT and DC disconnect switch represent an optimal solution for residential installations.
These inverters have a wide range of input voltages to allow you to collect the maximum amount of energy possible from the photovoltaic system.
Main features:

Easy Installation

10 year guarantee

“Zero entry” function (with accessory)

CEI-021

IP66

Max. efficiency 97,7%

String current up to 14A


Solis Three-phase S5-GR3P(6-20)K
Three-phase string inverter
Solis three-phase 6-20 kW string inverters with double MPPT and DC disconnect switch represent the optimal solution for residential, commercial and small industrial systems.
Solis three-phase inverters already work at low input voltage ranges, with an activation threshold of 180V.
This type of inverter can be parallelized with three-phase hybrid inverters.
Main features:

“Zero entry” function (with accessory)

CEI-021

Efficiency up to 98,7%

IP66

String current up to 16A


Solis Three-phase S5-GC (25-40)K
Three-phase string inverter
Three-phase string inverter with power of 25 - 30 and 60 kW.
Support high power modules for lower installation costs with a string current up to 16A.
It's equipped with AFCI protection for reduces fire risk.
Main features:

CEI-021

Efficiency up to 98,7%

IP66

String current up to 16A


Solis Three-phase S5-GC (50-60)K
Three-phase string inverter
Three-phase String Inverters with 50 and 60 kW of power.
String current up to 16A.
Equipped with 5/6 independent MPPTs, it has been designed without fuses to avoid the risk of fire.
Main features:

CEI-021

Efficiency up to 98,7%

IP66

String current up to 16A

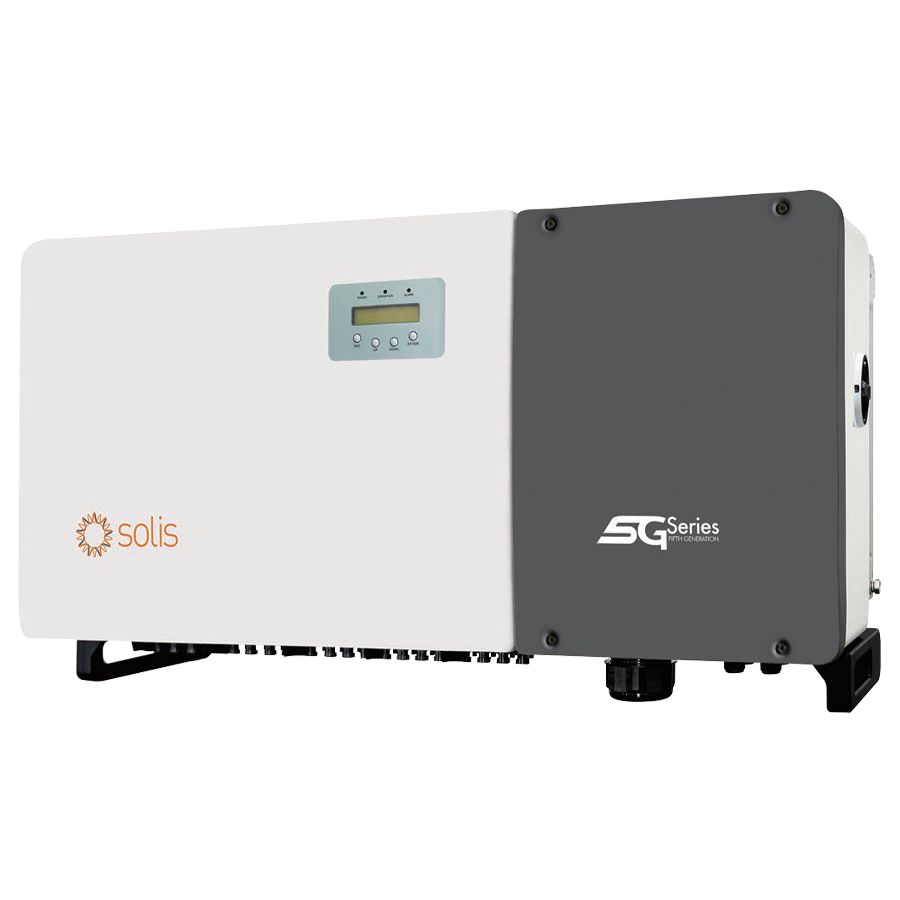

Solis Three-phase (80-110)K
Three-phase string inverter
Three-phase String Inverter with power of 80 kW, 100 kW and 110 kW is equipped with 9/10 independent MPPT and compatible with double-sided modules.
Remote firmware update is possible.
Main features:

CEI-021

Efficiency up to 98,7%

IP66
