Rack M1-22

zeroCO2 - XL EU rack M1-22 for storage

zeroCO2 XL - Rack M1-22 is an energy storage system based on high voltage Li-ion (LFP) lithium batteries, to be combined with the zeroCO2 - XL EU System.

Each rack can hold up to 21 Pylontech model H32148-C battery modules, for a nominal storage capacity of 100 kWh.

The battery modules are connected in series inside the rack and managed by a BMS controller which monitors their state of charge and safety.

Main features:

CEI-021

CEI-016

IP20

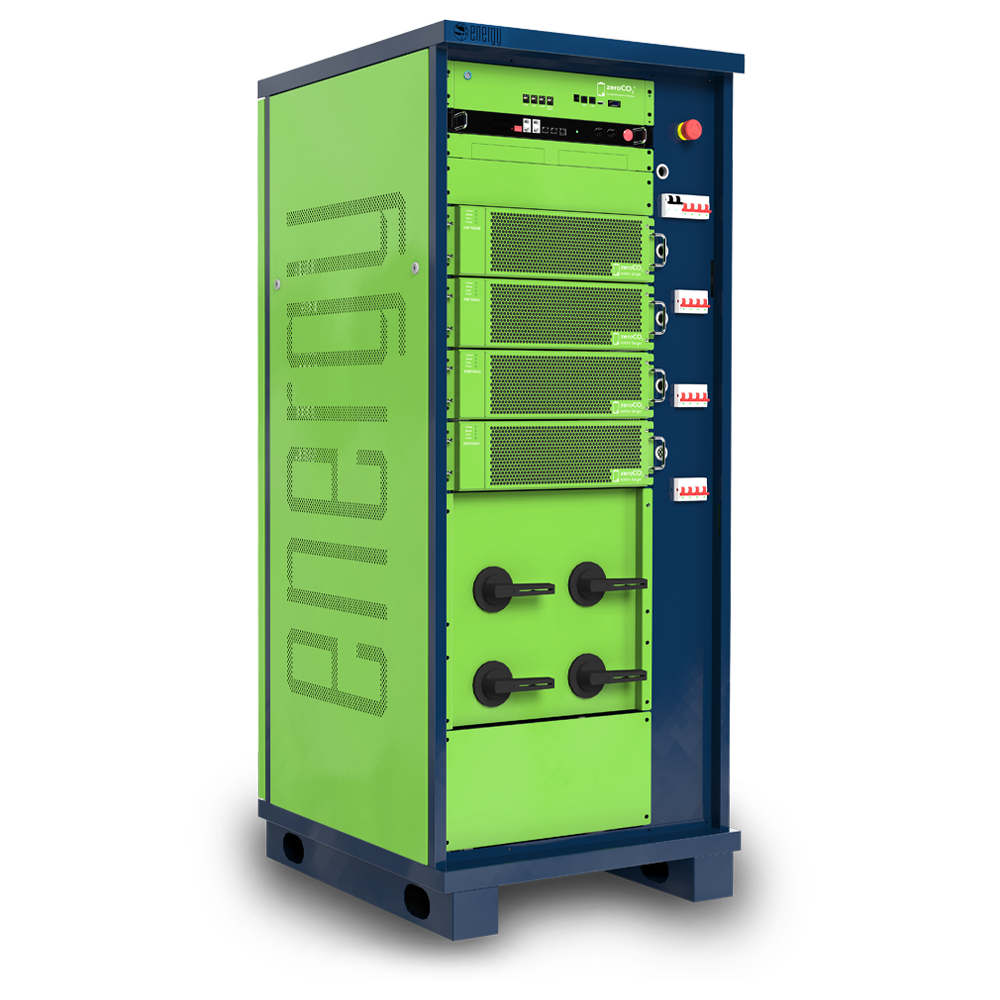

zeroCO2 - XL EU System

zeroCO2 - XL EU System

zeroCO2 - XL EU System is a power management and conversion system designed for storage of large quantities of energy.
Thanks to its modularity, it is able to easily scale from a few kW to several MW of active power managed, based on customer needs.

The energy conversion is carried out through a PCS (Power Conversion System) available in the sizes of 30 kW and replicable in parallel up to 4 units.

The PCS find themselves in a dedicated cabinet together with the AC and DC protections as well as the EMS (Energy Management System). The latter is the heart of the storage system operation, through it it is possible to program and monitor the charge and discharge of the batteries according to the needs of the application, from maximum self-consumption to peak shaving, even scheduling by calendar and time slots.

Main features:

Compatible with Pylontech batteries

CEI-021

CEI-016

IP20

2 year guarantee

zeroCO2 - XL 100

All-In-One Solution for Indoor applications

zeroCO2 - XL Shell 100 is the All-In-One solution made up of Pylontech H32148-C LFP batteries and with integrated EMS for peak shaving and maximizing self-consumption.

It is a system for Indoor applications with 60 kW of power and 100 kWh of accumulation capacity, plug & play to manage, convert and exploit energy in systems with high power requirements and storage dimensions that determine a deferred use for more hours of all stored energy.

Consisting of a triple section rack, bearing structure in polyester powder coated galvanized sheet metal with AC disconnectors, DC disconnector and magnetic switch included; the batteries are already installed and the electrical panel is factory pre-wired up to the user-side interfaces. The power supply is AC 400V 3Ph +N + PE for On-Grid systems.

Suitable for new build or retrofit systems.

Main features:

Compatible with Pylontech batteries

CEI-021

CEI-016

IP20
